Home / Grandstream / Grandstream HT801 ATA

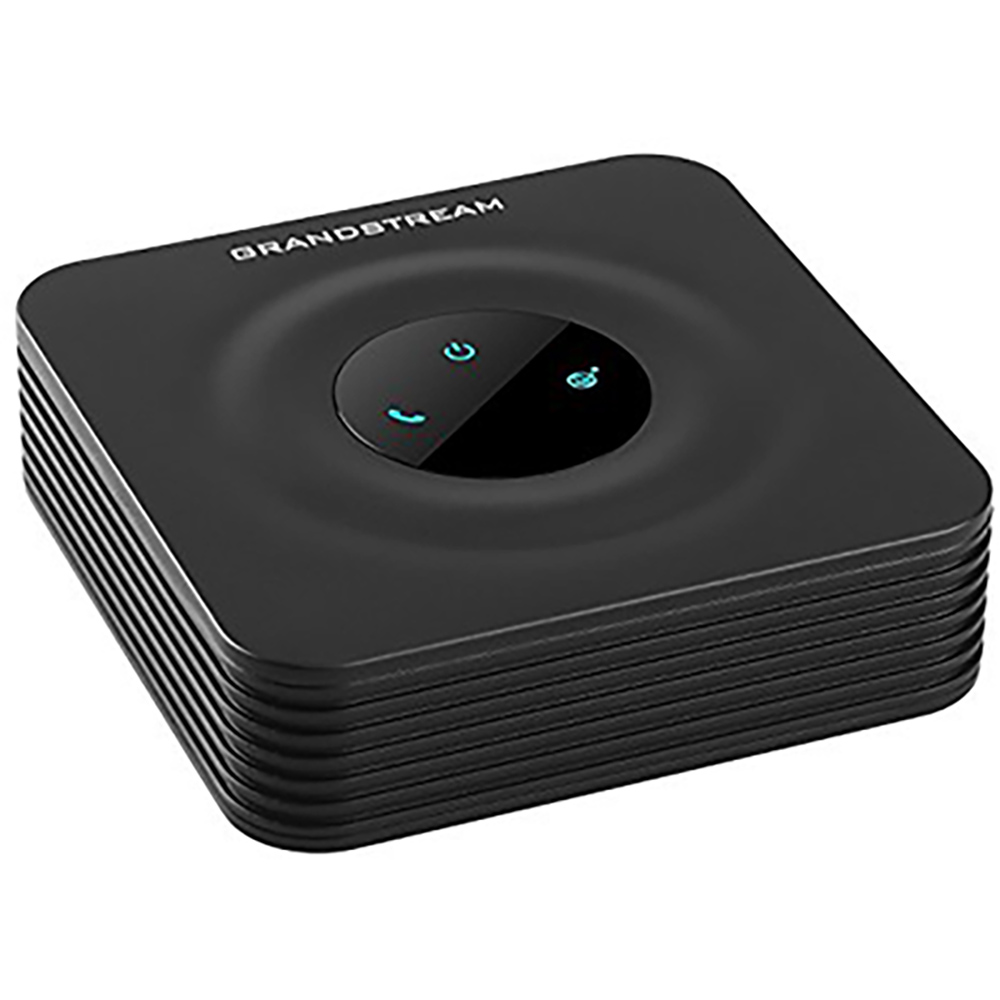

Grandstream HT801 ATA

The Grandstream HT801 is a compact single port analog telephone adapter designed to deliver dependable IP telephony for residential and office environments. It enables analog phones to connect to VoIP networks while providing strong voice quality, flexible provisioning options, and advanced calling capabilities in a small and easy-to-deploy form factor.

This ATA is well suited for individual users, service providers, and commercial IP voice deployments that need a manageable analog endpoint. With support for security encryption, failover protection, Fax-over-IP, and zero configuration provisioning when paired with Grandstream UCM systems, it offers a practical solution for extending VoIP services to analog devices.

  • Supports 1 SIP profile through a single FXS port
  • Single 10/100Mbps auto-sensing Ethernet port
  • TLS and SRTP encryption for call and account protection
  • Automated provisioning with TR-069 and XML config files
  • Supports 3-way voice conferencing
  • Failover SIP server automatically switches to a secondary server
  • Supports T.38 Fax for Fax-over-IP deployments
  • Supports a wide range of caller ID formats
  • Compatible with Grandstream UCM series for Zero Configuration provisioning
  • Includes advanced telephony features such as transfer, forward, hold, and do not disturb
  • Telephone Interface: One FXS port
  • Network Interface: One 10/100Mbps auto-sensing Ethernet port (RJ45)
  • LED Indicators: POWER, INTERNET, PHONE
  • Telephony Features: Caller ID, call waiting, flash, blind or attended transfer, forward, hold, do not disturb, 3-way conference
  • Voice Codecs: G.711, G.722, G.723.1, G.729A/B, G.726-32, iLBC, Opus
  • Fax Over IP: T.38 compliant Group 3 Fax Relay up to 14.4kbps
  • Provisioning: HTTP, HTTPS, SSH, TFTP, TR-069, AES encryption, syslog
  • Security: SRTP media security and TLS/SIPS/HTTPS control security
  • Power Supply: 5.0VDC/1.0A
  • Dimensions: 100mm x 100mm x 29.5mm
Grandstream HT801 Datasheet
PDF | Spec Sheet | datasheet_ht801_english.pdf
Open
Voigo SKU: VG1021 | Mfg Model: HT801
Grandstream HT801 ATA
The HT801 is a single port ATA built for users who need to connect an analog phone to a VoIP network with reliable performance and straightforward deployment. It combines compact hardware with core business telephony features, security encryption, and support for fax applications. It is a practical choice for small office, residential, and service provider use cases where a single analog endpoint is needed. The device also supports automated provisioning and failover options, helping simplify management and improve service continuity.
$199.00 $49.99
