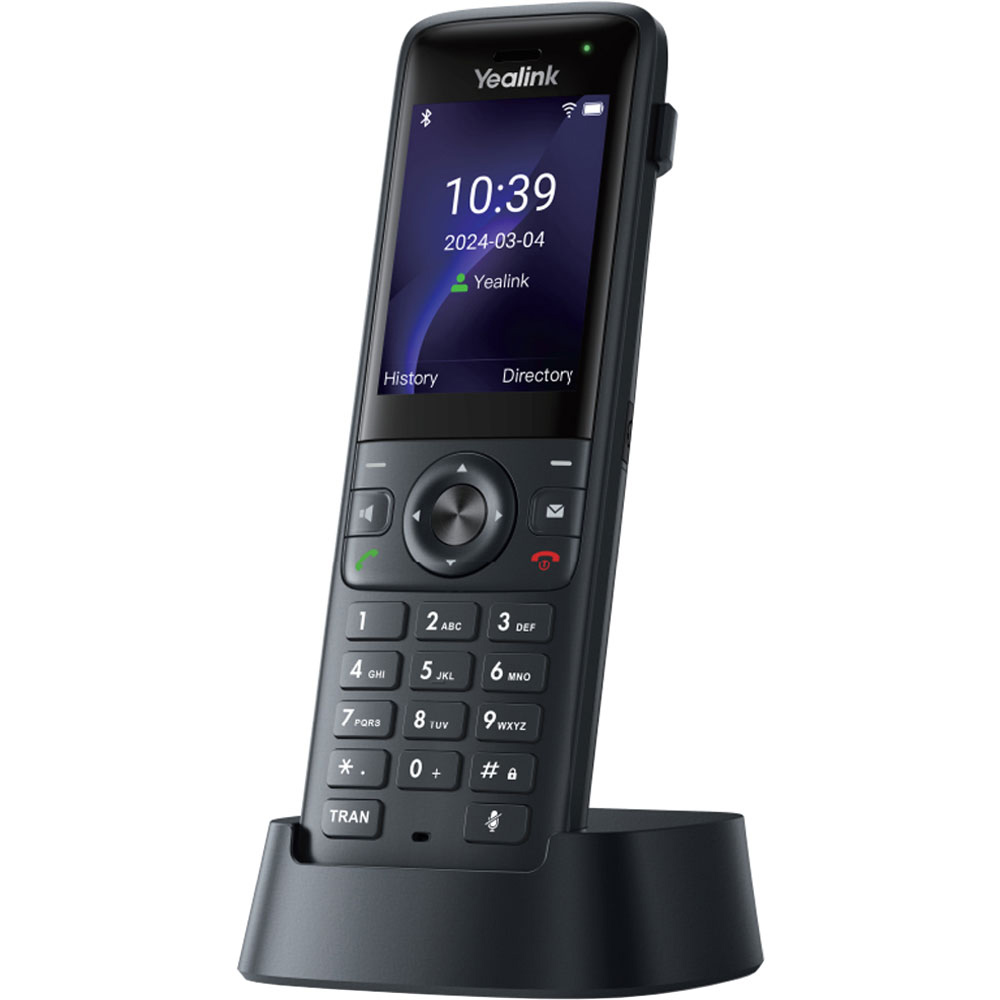

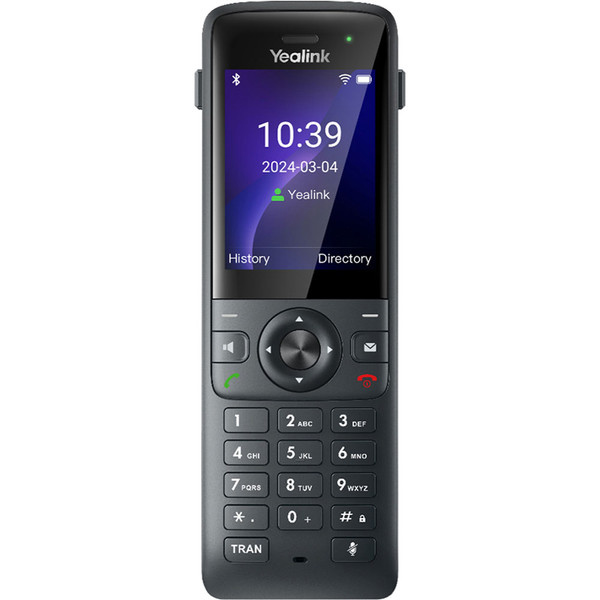

The Yealink AX83H is an enterprise portable Wi-Fi IP phone built for organizations that require reliable, high-quality wireless voice communication. Supporting up to four SIP accounts and featuring a 2.4-inch 240x320 TFT color display, the AX83H is designed for use across a wide range of wireless environments, including offices, warehouses, supermarkets, hotels, and small-to-medium enterprises. Its compact, lightweight handset design and included belt clip make it an ideal mobile communication solution for workers on the move.
The AX83H integrates dual-band Wi-Fi 6 (IEEE 802.11a/b/g/n/ac/ax) with IEEE 802.11k/v/r fast roaming protocol support, enabling seamless access point switching in milliseconds without dropped calls. Built-in Bluetooth 5.0 allows connection to Bluetooth headsets for hands-free operation. Yealink's Optima HD Audio and Smart Noise Cancellation technology ensure crystal-clear voice quality, while the hearing aid compatible (HAC) handset extends accessibility to users with hearing impairments.
Powered by a 2000mAh rechargeable battery with up to 9 hours of talk time and 200 hours of standby, the AX83H is built for all-day use. It supports Type-C charging, local 5-way conferencing, 9 configurable keys, and full IP-PBX features including call park, call recording, multicast paging, and voicemail.
- 2.4" 240x320 TFT color display with keypad backlight and vibration alert
- Dual-band Wi-Fi 6 (2.4G/5G, IEEE 802.11a/b/g/n/ac/ax) with seamless roaming
- IEEE 802.11k/v/r fast roaming for uninterrupted call handoff between access points
- Built-in Bluetooth 5.0 for wireless headset connectivity
- Optima HD Audio and Smart Noise Cancellation for clear voice quality
- 2000mAh battery with up to 9-hour talk time and 200-hour standby
- Supports up to 4 SIP accounts and local 5-way conferencing
- Type-C charging port and 3.5mm headset jack
- 9 configurable keys plus TRANS and Mute dedicated keys
- Model: AX83H
- Type: Enterprise Portable Wi-Fi IP Phone
- Display: 2.4" 240x320 TFT color screen
- SIP Accounts: Up to 4
- Wi-Fi: Dual-band 2.4G/5G, IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
- Roaming: IEEE 802.11k/v/r
- Bluetooth: Built-in Bluetooth 5.0 (headset support)
- Audio: Optima HD Voice, Smart Noise Cancellation, HAC compliant
- Audio Codecs: G.722, G.711μ/A, G.729, G.729A/B/AB, G.726, G.723.1, iLBC
- DTMF: In-band, Out-of-band (RFC 2833), SIP INFO
- Speakerphone: Full-duplex with AEC
- Battery: 2000mAh rechargeable
- Talk Time: Up to 9 hours (lab data)
- Standby Time: Up to 200 hours (lab data)
- Conferencing: Local 5-way
- Feature Keys: 2 soft keys, 6 function keys, 9 configurable keys, navigation + OK key
- Interface: 1 × 3.5mm headset jack, 1 × Type-C port
- Directory: Local phonebook up to 1000 entries, XML/LDAP, Google Contacts
- Security: SRTP, TLS 1.3, AES256, OpenVPN, WPA/WPA2/WPA3, IEEE 802.1X
- Management: YDMP/YMCS, auto-provision (FTP/TFTP/HTTP/HTTPS), TR-069, PnP
- Power: AC 100–240V input, DC 5V/1.2A output (power adapter)
- Handset Size: 151.0 × 49.5 × 21 mm
- Handset Weight: 126 g
- Operating Temperature: 0 to 40°C
- Operating Humidity: 10%–95%
- Storage Temperature: -30 to 70°C
- Qty per Carton: 20 pcs
- Net Weight per Carton: 7.36 kg
- Gross Weight per Carton: 8.03 kg
- Gift Box Size: 181 × 104 × 90 mm
- Carton Dimensions: 464 × 434 × 198 mm
- Compliance: CE, FCC, RoHS, REACH, ISO 9001, BroadSoft, 3CX, Genesys, Metaswitch, Asterisk Compatible
- Package Contents: AX83H Handset, Charger Cradle, Rechargeable Battery, Belt Clip, Power Adapter, Quick Start Guide
| ✓ | Wi-Fi 6 Cordless Handset for Mobility |
| ✓ | 2.4" Color Display with Intuitive Interface |
| ✓ | Supports up to 4 SIP Accounts |
| ✓ | Optima HD Audio with Smart Noise Cancellation Technology |
| ✓ | Up to 9-Hour Talk Time and 200-Hour Standby |
