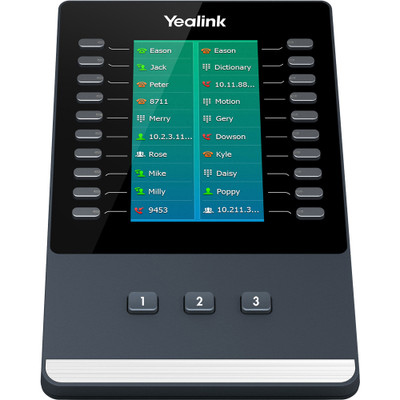

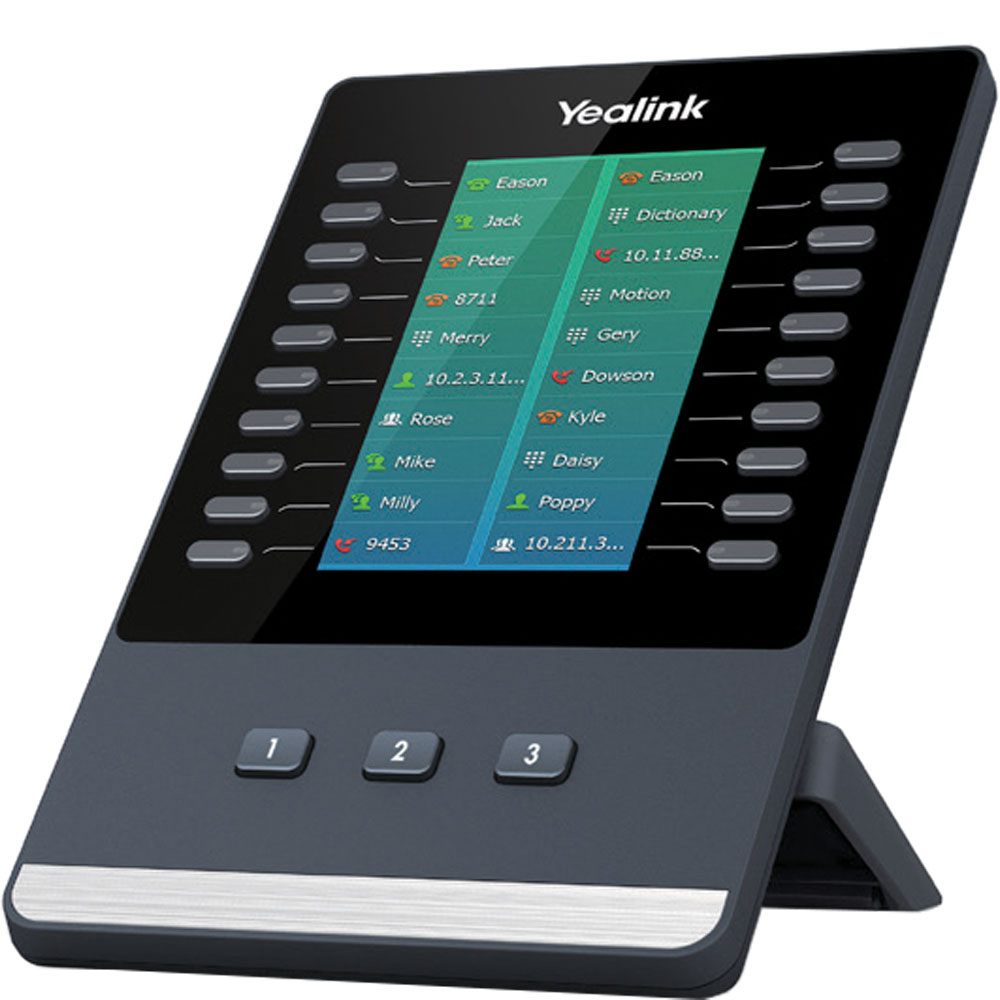

The Yealink EXP50 Color-screen Expansion Module is designed to expand the functional capability of Yealink T53, T53W, T54W, T57W, T58A, and T58W IP phones to a whole new level. Featuring a large 4.3-inch color LCD display, the EXP50 delivers a vivid visual experience along with a simple user interface and advanced call handling capabilities. Three pages of 20 flexible buttons can be programmed for up to 60 various features per module.
The EXP50 extends the functionality of compatible Yealink T5 Series IP phones by providing multi-functional line keys that can be configured as BLF, speed dial, call forward, transfer, call park, call pickup, and more. With support for daisy-chaining up to three modules, users can add up to 180 additional programmable buttons. Connection is made simple via USB cable, ensuring reliable data transmission and fast screen refresh.
Ideal for receptionists, administrative assistants, and contact center workers, the Yealink EXP50 gives users the ability to monitor contacts and manage a high volume of concurrent calls with ease. The intuitive color icons, customizable wallpaper, and screensaver options allow users to personalize the experience to fit their workflow.
- 4.3" 272 x 480-pixel color LCD display
- 16-bit depth color with rich icon support
- 20 physical keys per page with dual-color LEDs
- Up to 60 programmable buttons per module across 3 pages
- Three independent control keys with illuminated LEDs for fast page switching
- Supports daisy chain of up to 3 modules for 180 additional keys
- Stand with 2 adjustable angles
- USB 2.0 port for headset, Wi-Fi dongle, or call recording
- Customizable wallpaper and screensaver
- Compatible with Yealink T53, T53W, T54W, T57W, T58A, and T58W IP phones
- Display: 4.3" 272 x 480-pixel color LCD with backlight
- Color Depth: 16-bit
- Physical Keys: 20 with dual-color LEDs per page
- Programmable Keys: Up to 60 per module (3 pages)
- Control Keys: 3 independent illuminated LED page switch keys
- Daisy Chain: Up to 3 EXP50 modules supported
- Connection: USB 2.0 (data in/out)
- Additional USB Port: 2.0 compliant for headset, Wi-Fi (WF40/WF50 for T53), or USB recording
- Power: USB powered, external 5V/2A adapter required for 2 or more modules
- Max Power Consumption: 1.8W
- Dimensions (W x D x H x T): 196.5 mm x 124.0 mm x 137.5 mm x 42.6 mm
- Operating Temperature: -10 to +45°C (+14 to 113°F)
- Storage Temperature: -30 to +70°C (-22 to +158°F)
- Operating Humidity: 10-95%
- Compatible Phones: Yealink T53, T53W, T54W, T57W, T58A, T58W
Compatible Accessories
| ✓ | 4.3" 272 x 480-pixel color LCD display with backlight |
| ✓ | Up to 60 Programmable Buttons Per Module |
| ✓ | Paperless Design with Digital Labels |
| ✓ | Daisy Chain Up to 3 Modules |
| ✓ | Designed for T5 Series IP Phones |
