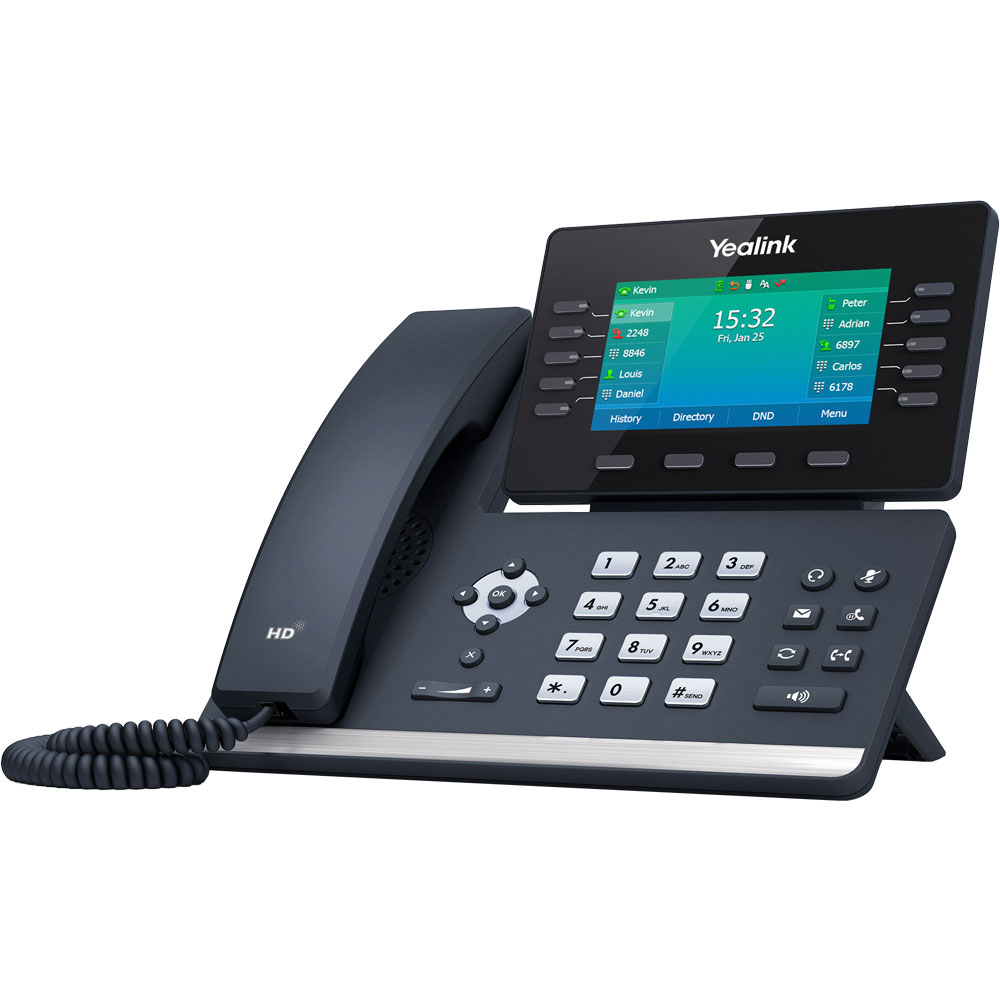

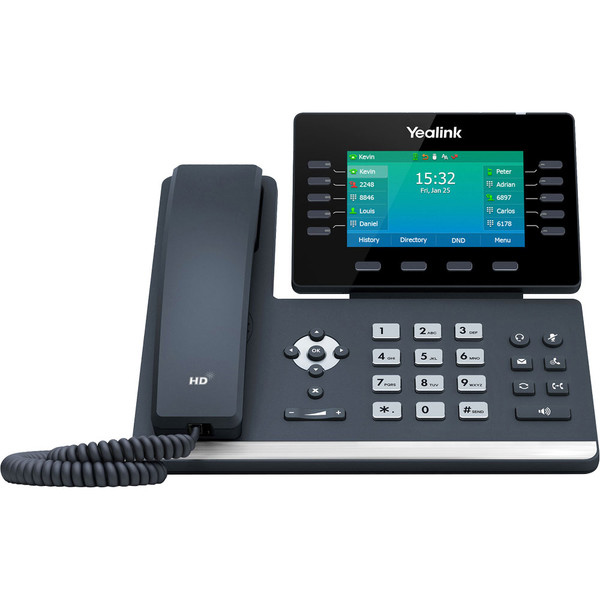

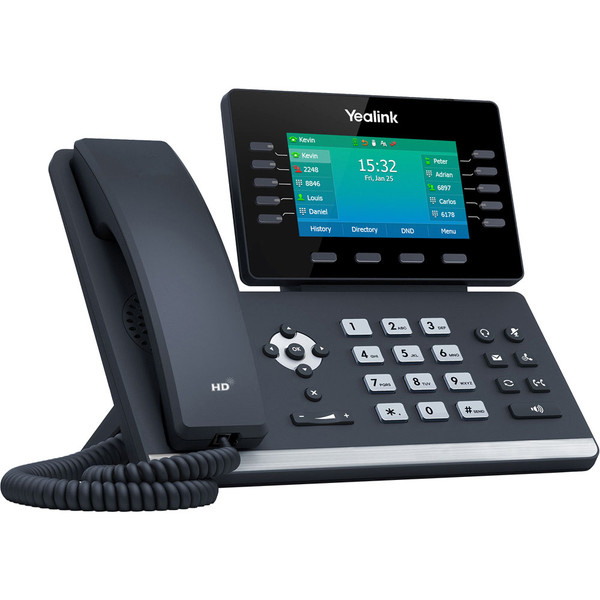

The Yealink SIP-T54W is a Prime Business IP Phone designed for busy executives and professionals who demand superior audio quality and modern wireless connectivity. Its adjustable 4.3" color LCD screen allows users to find a comfortable viewing angle for any desk environment, while Yealink's Optimal HD Voice technology with Acoustic Shield delivers crystal-clear audio even in noisy surroundings. The HAC-compliant handset ensures accessibility for users with hearing loss.
Built-in Bluetooth 4.2 enables wireless headset connectivity and mobile contacts synchronization, while built-in dual-band 2.4G/5G Wi-Fi (802.11a/b/g/n) provides flexible network deployment without the need for a wired connection. The T54W also supports DECT technology via the optional DD10K dongle, allowing the phone to function as a corded-cordless system with up to 4 concurrent wireless handsets.
With a built-in USB 2.0 port, the T54W supports USB call recording, wired and wireless USB headsets, and up to 3 cascaded Yealink EXP50 color-screen expansion modules. Zero-touch provisioning via Yealink RPS and unified firmware across the T53/T53W/T54W/T57W series simplify deployment and ongoing management for IT teams of any size.
- Supports up to 16 SIP accounts
- 4.3" adjustable 480x272 color LCD display with backlight
- Built-in Bluetooth 4.2 for wireless headsets and mobile pairing
- Built-in dual-band Wi-Fi (2.4GHz/5GHz, 802.11a/b/g/n)
- USB 2.0 port for headset, call recording, and EXP50 expansion modules
- Supports up to 3 cascaded EXP50 color-screen expansion modules
- 10-way audio conferencing
- PoE support (IEEE 802.3af) and dual Gigabit Ethernet ports
- DECT corded-cordless support via optional DD10K dongle
- Zero-touch provisioning via Yealink RPS
- Display: 4.3" adjustable color LCD, 480x272, 16-bit color
- SIP Accounts: Up to 16
- Programmable Keys: 27 DSS keys (10 line keys, 3 pages)
- Network Ports: Dual Gigabit Ethernet
- Wi-Fi: Built-in dual-band 802.11a/b/g/n (2.4GHz / 5GHz), up to 433Mbps
- Bluetooth: Built-in Bluetooth 4.2
- USB: 1 × USB 2.0 (headset, recording, EXP50 expansion)
- Audio: HD Voice, Acoustic Shield, Smart Noise Filtering, Full-Duplex Speakerphone
- Conferencing: 10-way audio
- Power: PoE (IEEE 802.3af, Class 3) or optional AC adapter (5V/2A)
- Security: TLS 1.3, SRTP, AES256, WPA2/WPA3, OpenVPN
- Dimensions: 233 mm × 222.6 mm × 186.1 mm × 41.7 mm
- Operating Temp: -10°C to +50°C (14°F to 122°F)
Compatible Accessories
| ✓ | 4.3" Adjustable Color LCD Display |
| ✓ | 27 programmable DSS keys |
| ✓ | Supports up to 16 SIP Accounts |
| ✓ | Built-in Bluetooth 4.2 and Dual-Band Wi-Fi |
| ✓ | USB Port for Headset or Call Recording |
